Campagnolo Super Record Hydraulic Flat Mount Wireless "S" EPS 12 Speed Groupset
Campagnolo's latest 12 speed groupset, the Super Record Wireless, which marks the Italian brand's debut with wireless electronic shifting. There are also some other major changes, such as the removal of Campagnolo's famous thumb shifters and all new cassettes with 10-tooth smallest cogs.
The new 12 speed Super Record Wireless is a long-anticipated addition to Campagnolo's lineup, which has been missing a wireless option alongside the road- and gravel-specific groupsets. Super Record Wireless will be replacing the existing Super Record EPS Rim and Hydro groupsets. In the process, cuts out Rim brake fans from enjoying Campagnolo's latest electronic shifting.
The new Super Record Wireless is built around Campagnolo’s ‘Dream Bigger’ ethos which is centered around standing out from the crowd. In the case of this groupset, that means the use of the highest-specification carbon fiber, titanium and aluminum to provide maximum functionality at a minimal weight, which for the full groupset is 2,520g. That's 20g more than the outgoing Super Record EPS Disc.
KEY FEATURES:
Super Record Wireless Campagnolo group, the moment has come. Creating a moment of perfection takes time. Thanks to the commitment made with in-depth studies and meticulous tests conducted on the field, the members of our wireless group are now a step forward from a technological point of view. A high-quality uncompromising design. Project your performance in a new dimension. Immerse yourself in a unique driving and pedaling experience, thanks to the perfect ergonomics of the commands, the extreme adaptability of the levers and the precision of the latest generation change.

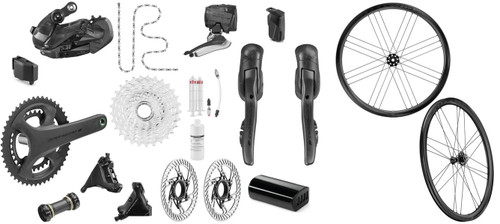

GROUPSET INCLUDES:
- Pro-Tech Bottom Bracket
- Super Record Crankset
- Super Record Ergo-power EPS Wireless command Shifter/Lever + 160mm Front Disc Caliper
- Super Record Ergo-power EPS Wireless command Shifter/Lever + 140mm or 160mm Rear Disc Caliper
- Super Record EPS Wireless 12V Front Derailleur
- Super Record EPS Wireless 12V Rear Derailleur
- Super Record Cassette Choice: 10-25, 10-27 or 10-29
- Super Record Chain, C-Link 113
- Batteries for Super Record EPS Wireless Front and Rear Derailleurs 12V (Including 2 USB charging magnetic cables)
- Super Record EPS Wireless Battery Charger Adaptor (Optional Purchase)
- Campagnolo Disc 03 AFS 140 mm (Optional Purchase)
- Campagnolo Disc 03 AFS 160 mm (Optional Purchase)
- Campagnolo Super Record Bleed Kit (Optional Purchase)
- Mineral Oil 50ml for Braking System (Optional Purchase)
Campagnolo Super Record Wireless - Tech Details
The new Campagnolo Super Record is a wireless, 12-speed groupset consisting of new Hydro Shifters, Crankset, Chain, Front and Rear Derailleurs and Brakes. These have been developed around four "performance pillars": dynamic riding experience (the connectivity of the components), perfect cadence (gearing), braking technology and lastly, user-centric technology.
Wireless Shifters
The first notable difference in the Super Record Wireless is that the new shifters have forgone the iconic Campagnolo thumb shifters. This means a brand new, sleeker lever and hood design. Campagnolo redesigned body lever shape utilizes "extra grip and cushioning for enhanced riding comfort". The shifter body itself houses coin batteries that power the shifters for up to two years.
The shifters feature ergonomically shaped levers and shifting paddles that are meant to be operated with your fore and middle finger. The paddle, which has a small gap between the two shifters, is placed behind the brake lever for shifting up and down. The right lever takes care of shifting up and down the cassette, and the left lever shifts the front derailleur to change between big and small chainrings. The system works similarly to Shimano Di2 out of the factory, but you can also configure the shifters to your liking in the MyCampy 3.0 app.
Inside the right-hand hood, where your thumb shifter would have previously been, is now a LED light that indicates the battery status. Next to the LED sits an EPS button that can be for example connected to Garmin for shuffling through data pages, or used by mechanics for servicing the groupset.
There are no time trial shifters in the pipeline, although Campagnolo may eventually make it onto pro TT bikes.
Gearing: 10t cassette cogs (but no 1x)
Campagnolo is renowned for its innovative gear ratios, and for Super Record Wireless, the brand has revamped the existing options. The new carbon crankset comes in three gearing configurations: 50-34, 48-32 and 45-29, and four crank lengths: 165, 170, 172.5 and 175mm. The Q-factor has also widened compared to Super Record EPS, now measuring 147.5mm.
The axle on the crankset is made of titanium and spins around in an all-new ‘high-durability’ featuring a dust-proof PRO-TECH patented external protective seal. The bolt circle diameter (BCD) of the chainrings has been changed, with the chainring bolts now having a diameter of 121/88. This means that previous iterations of Super Record chainrings will be incompatible.
What about 1x? For all its innovation with gear ratios, Campagnolo said a firm 'no' for now when it comes to single chainring set-ups - but you never know what the future holds. This is a road groupset and 2x only.
The cassettes are another significant change. The new N3W cassettes are available with 10-25t, 10-27t and 10-29t options. N3W stands for ‘New Three Ways’ and is a hub technology Campagnolo introduced nearly three years ago, but this marks the first time we've seen a modern Campagnolo cassette with a 10-tooth smallest cog.
The ratios aren't as wide-ranging as cassettes offered by SRAM, with options up to 10-36t to give lower bottom gears from the US brand; but both the 10-25t and 10-27t cassettes from Campagnolo will offer tighter steps between shifts than is offered by its rival and "unrivalled cadence" according to Campagnolo itself.
Wireless Derailleurs
This is a wireless electronic groupset, that means you need to charge it somehow. Both the front and rear derailleurs have removable batteries - but they are not interchangeable. Both batteries feature magnetic charging points that you can use for charging the batteries either on or off the bike with a cable. On the front derailleur the battery is placed at the front instead of the rear, which we've become accustomed to with other major brands.
Campagnolo says you can get a 90 per cent charge in 45 minutes and a full charge in just 60 minutes. Each of the batteries has an LED light that indicates the charging status.
Braking Technology
The most notable thing to say about the Super Record Wireless brakes is the lack of a rim brake option. Whereas the previous Super Record EPS came in two options, one for disc brakes and another for rim brakes, the new Super Record Wireless is one more hit for rim brake lovers, who are increasingly being left behind in the new cycling tech developments.
The new groupset features a refreshed brake caliper aesthetic and Campagnolo’s patented rotor design that provides effective cooling and has an anti-cutting shape. The rotors - available in both 140mm and 160mm diameters - are slightly thicker than other brands’ offerings, and the rounded anti-cutting shape does refer to what you might have thought - it’s designed for some additional safety on the roads, and should help avoid any unwanted disc brake cuts.
Shift into New Dimensions
Campagnolo Bora WTO 35 C23, 2-Way Fit, Disc-brake Wheelset
Campagnolo introduces the release of the modernized version of the top-of-the-line carbon wheels that have transfixed the most demanding cyclists around the world for many years. The beautiful design elements in the three different profile heights enrich the well-known Bora Ultra WTO and Bora WTO models. BORA WTO 35 DISC BRAKE is the ideal choice for anyone seeking superior lightness and handling, with a structure that provides an unprecedented feeling of control.
The CAMPAGNOLO Bora WTO C23 35 Disc Tubeless 2-Way Fit™ Road Wheel Set in Black is a high-performance wheel set designed for road cycling. These wheels feature a 35mm deep rim profile, making them aerodynamic and responsive on the road.
The wheels are tubeless-ready, allowing for lower tire pressures and improved puncture resistance. The 2-Way Fit™ technology means that these wheels can be used with both clincher and tubeless tires, giving riders flexibility in their tire choice.
The black color gives the wheels a sleek and stylish appearance, while the Campagnolo branding adds a touch of luxury.
Overall, the CAMPAGNOLO Bora WTO C23 35 Disc Tubeless 2-Way Fit™ Road Wheel Set in Black is a top-of-the-line option for riders looking for a high-performance and versatile wheel set for their road bike. New Style Campagnolo N3W Freehub Body for 10/11/12/13 Speeds.
KEY FEATURES:
- Use: Road
- Rim type: Clincher / Tubeless Ready / Tubeless (Hooked)
- Rim diameter: 622x23C
- Rim material: UD carbon with Campagnolo H.U.L.C. technology (Handmade Ultra Light Carbon)
- Rim profile (front / rear): Symmetrical
- Rim height (front / rear): 35 mm
- Internal channel width: 23 mm
- External rim width: 28.4 mm
- Spokes (front / rear): 21
- Spoke pattern: G3
- Spokes: Steel (straight pull, aero, 1.5 mm tapered)
- Nipples: Aluminum (self-locking Aero Mo-Mag, internal)
- Hubs: Aluminum (Infinity Hub)
- Hubs: Carbon (front), aluminum (rear)
- Bearings: CULT ceramic, cone & cup
- Freewheel body system: Pawls
- Weight (manufacturer, pair): 1285 gr.
- Others: Water Transfer DCS (Dark Copper Shaded) Graphics
- Color: Carbon with C-LUX finish
COMPATIBILITY:
- Braking system: Disc Center Lock
- Front axle: 12x100 mm *
- Rear axle: 12x142 mm *
- Recommended tire width: 28/35-622
FREEHUB BODY COMPATIBILITY & USE:
- Campagnolo N3W (11/12/13s)
INCLUDED:
- Aero Mo-Mag nipple maintenance kit
- Tubeless valves
- Center Lock rings
- Campagnolo wheel bags
- Bag for Campagnolo accessories
- Tire removal levers
- Campagnolo N3W adapter for Z11 (only in the version with Campagnolo N3W body)
* Through axle and disc brake rotors not included.
CULT - CERAMIC ULTIMATE LEVEL TECHNOLOGY
The iconic CULT—ceramic bearings for Campagnolo racing bike wheels—are only mounted on the best hubs and cranksets and are revolutionary compared to other bearings on the market. Thanks to their properties, produced to specific Campagnolo design, CULT bearings offer extremely low friction, enabling maximum performance and energy savings when pedaling. The top-quality ceramic balls with high-precision roundness and resistance turn inside polymer cages on stainless steel races that are extremely resistant to wear and tear. These cages are designed with tolerances accurate to the micron, which maximizes their efficiency and durability. CULT bearings do not deform or corrode, ensuring long-term constant performance and product quality. Their maintenance requires only periodic cleaning and light lubrication with synthetic oil. CULT bearings have a 40% lower friction coefficient than standard sealed bearings and they roll for 5 and a half times longer in tests.
H.U.L.C. HANDMADE ULTRA-LIGHT CARBON
H.U.L.C. (Handmade Ultra-Light Carbon) is the exclusive Campagnolo technology for the production of carbon rims that optimizes the carbon fiber and resin ratio to increase stiffness and control. This distinctive feature of top-end Campagnolo wheels is an evolution of the exclusive carbon molding process patented by Campagnolo that creates defect-free rims and requires no additional coats of lacquer. Optimization of the carbon fiber and resin ratio guarantees a reduction in weight and unprecedented dimensional accuracy of the safety elements on the 2-Way Fit rim (coupling diameters, hooks and humps).
G3 SPOKE GEOMETRY
Campagnolo’s iconic G3 geometry challenges the conventional configuration of wheel spokes on racing bikes. Groups of three parallel straight-pull spokes are in fact arranged in a ratio of 2:1. Having twice as many spokes on one side allows wheels with G3 technology to achieve perfectly balanced tensions, increasing stiffness and improving energy transfer. An iconic design with unique style that helps to improve load absorption and reduce weights. The G3 spoke pattern also has a positive effect on the steering experience: the original triplet pattern reduces perceived vibrations, minimizing micro-deformation of the rim under tension and its response to stressors on the course. G3 geometry is designed with optimized solutions for front and back wheels. The front one has more spokes on the disc side to absorb braking loads. Whereas on the back one the same loads are transferred to twice the number of spokes on the cassette side through the monolithic hub body: an intuitive idea that enables functioning during both braking and energy transfer during pedaling.
SPECIFICATIONS:
- Black-on-black Dark Label graphics
- Choose a Cassette Body Type: Campagnolo 10/11/12 or Shimano HG 10/11 Speed (when listed)
- Only 1520g per pair
- Thru Axels are not Included
- Made in Italy
